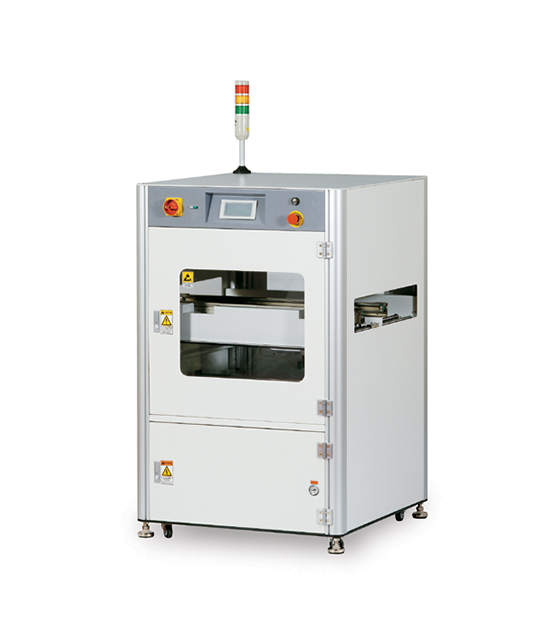

SCAN STATION

Used to connect equipment effectively in the prodcution line through SMEMA interface

Character
  • Barcode adjustment manual screen
    Barcode high adjustment range
    SMEMA interface
    Buzzer, LED display
    Durable structure of double based plat
    Slim & Round design
    LED tower light
Option
  • Conveyor speed control
    RS-232C interface
    Touch screen operation
    Auto width control system
    Dual lane
    CE type
    RS-485 Communication
Product inquiry

MODEL TYPE Max_PCB(LxW) Min_PCB(LxW) DIMENSION(LxWxH) POWER AIR(MPa) WEIGHT(Kg)
ABCR-50S SL 330X250 50X50 500X600X1355 0.2kVA 0.5±0.1 110
ABCR-50Y YL 440X330 50X50 600X680X1355 0.2kVA 0.5±0.1 120
ABCR-85K XL 510X510 50X60 830X860X1355 0.2kVA 0.5±0.1 140
